High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute

Certification
China Jiaozuo Debon Technology Co., Ltd. certification
I'm Online Chat Now

High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute

High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute
High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute
High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute

Large Image :  High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute

Product Details:
Place of Origin: CHINA
Brand Name: Debon
Certification: SGS, ISO9001
Model Number: DB-TCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Crate or Pallet
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

High Wear Resistant Alumina Ceramic Liner Rubber Wear Liner For Mining Chute

Description
Material: High Alumina Ceramic, Zta Cearmic, Rubber Fastening: Bolt On, Magnetic, Countersinks, Etc.
Ceramic Shape: Brick, Cylinder, Hexagonal, Rectangular, Square Steel Backing Plate: Mild Steel Or Stainless Steel
Custom Ceramic Liner: Available Alumina Content: Zta, Hpa, 92%, 95%, Etc.
Application: Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Coal Mine, Iron Ore Mine, Etc. HS Code: 6909120000
High Light:

Steel Backed Al2O3 ZTA Ceramic Wear Liner

,

Steel Backed Al2O3 ZTA Ceramic Wear Lining

,

Steel Backed ZTA Ceramic Wear Lining

High Wear Resistant Alumina Ceramic Rubber Wear Liner For Mining Chute



We are a factory dedicated to producing ceramic wear liners and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.
We also use brand adhevise to ensure the bonding between ceramic and rubber.
Ceramic shapes can be cylinder, hexagonal, square, rectangular, etc.



Ceramic wear liners desicription

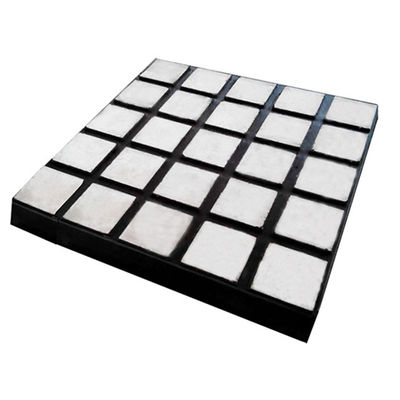

Rubber ceramic lining plate is with a high wear resistant ceramics vulcanized within resilient rubber. The ceramics provide excellent resistance to wear, while the elasticity of rubber effectively dampens impact forces. This combination well solved the problem of the wear and impact area.



Types of ceramic tiles.


1. 92% or 95 al2o3 alumina ceramic tiles
2. ZTA, zirconia toughend alumina ceramic tiles.
3. High performance alumina ceramic tiles.



Ceramic wear liners Specification:



Specification Of ceramic rubber sheet
Specification ( L×W×T) Thickness Details
300*300*12mm 6mm ceramic+6mm rubber
250*250*15mm 10mm ceramic+5mm rubber
250*300*16mm 12mm ceramic+4mm rubber
500*500*15mm 10mm ceramic+5mm rubber
500*400*20mm 12mm ceramic+8mm rubber
500*500*30mm 20mm ceramic+10mm rubber
300*300*63mm 50mm ceramic+13mm rubber
500*500*63mm 50mm ceramic+13mm rubber



Fixing methods:
1. Steel backing plate with studs.
2. Countersinks for bolt.
3. Bond
4. Magnets

Rubber-ceramic wear liners with stud bolts for easy installation.



Why choose us:



√ SGS audited supplier
√ ISO9001 certified factory
√ Extensive experience
√ Excellent bonding between ceramic and rubber, rubber and steel plate
√ Proven quality
√ Wear liners are exported to many countries:

   Australia, Chile, USA, Canada, Russia, Kazakhstan, Malaysia, etc



About our factory:

Jiaozuo Debon Technology CO, LTD is specialized in designing and manufacturing rubber and polyurethane products. Main products include: various kinds of rubber sheets, rubber lagging, rubber ceramic lagging, skirt board, rubber ceramic wear liner,polyurethane belt scraper secondary belt cleaners urethane scraper,impact bar, etc.
