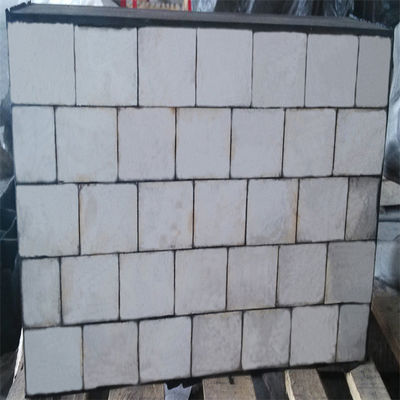

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners
AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners
AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners

Large Image :  AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners

Product Details:
Place of Origin: CHINA
Brand Name: Debon
Certification: SGS, ISO9001
Model Number: DB-TCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Crate or Pallet
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners

Description
Name: Alumina Ceramic Liner Material: AI2O3 Ceramic, Rubber/polyurethane
Connection: Weldable, Stud-welded Studded Metal Plate, CN Bonding,Magneted, Etc Ceramic Shape: Cylinders, Cones,Hexagonal Tiles,Custom Shapes
Rubber Hardness:: 55±5 Shore A Process: Hot Vulcanizing
Specification: Custom Size Can Be Made Per Requirment Alumina Content: ≥92% Alumina
Application: Mining, Cement,power Generation,steel Manufacturing,etc HS Code: 6909120000
High Light:

Ball Mill AI2O3 Ceramic Chute Liners

,

AI2O3 Ceramic Polyurethane Ceramic Chute Liners

,

AI2O3 Ball Mill Ceramic Chute Liners

Wear Ceramic Chute Liners Ball Mill Ceramic Tile Liners Polyurethane Ceramic Lining



Alumina Ceamic Liner Description:



Alumina ceramic liner is a type of wear-resistant lining material used to protect industrial equipment from abrasion, impact, and corrosion. It is made of high-density alumina ceramic tiles or panels that are bonded to a substrate such as steel or rubber.



The alumina ceramic tiles are arranged in a specific pattern to provide maximum protection against wear and impact. They are known for their exceptional hardness and wear resistance, which make them ideal for use in harsh industrial environments.

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners 0



Alumina Ceramic Liner Specification:



Item
Description Unit Result
Alumina Ceramics
1 Alumina(Al2O3) % 92 / 95
2 Desity g/cm3 3.64
3 Water Absorption % ≤0.01
4 Hardness Mohs 9
Rubber
1 Material   NR, BR
2 Gravity Tensile Strength 1.15
3 Tensile Strength MPa 16 min
4 Elongation % 400 min
5 Abrasion Loss mm3 ≤80
6 Aging coefficient (70ºCx48h)   0.87
Peeling Strength
1 Peeling strength between rubber & ceramic KN/m ≥12
2 Peeling strength between rubber & steel KN/m

≥12





Alumina Ceramic Liner Features:





High wear and abrasion resistance

Long wear life, low maintenance and downtime

Significant noise reduction

Available in awide variety of shapes and sizes

Corrosion resistant

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners 1

Alumina Ceramic Liner Application:



Alumina ceramic wear liners are commonly used in industries such as mining, cement production, power generation, and steel manufacturing, where equipment is subjected to extreme conditions and heavy wear.

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners 2



Alumina Ceramic Liner Package:



Standard export packing, plywood pallet, no wood, no need fumigation

Pallet size: 1000*1000*620mm, Pallet weight: 1.2 tons

Pallet quantity for each 20GP container: 20~24 pallets

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners 3

Why choose us:



1. Rich experience on production process of alumina ceramic liner

2. Strict quality control on ralumina ceramic liner

3. Good delivery time

4. Custom shape alumina ceramic liner are available.

5. Excellent bonding between rubber and ceramic



We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.

AI2O3 Ceramic Chute Liners Ball Mill Polyurethane Ceramic Tile Liners 4
