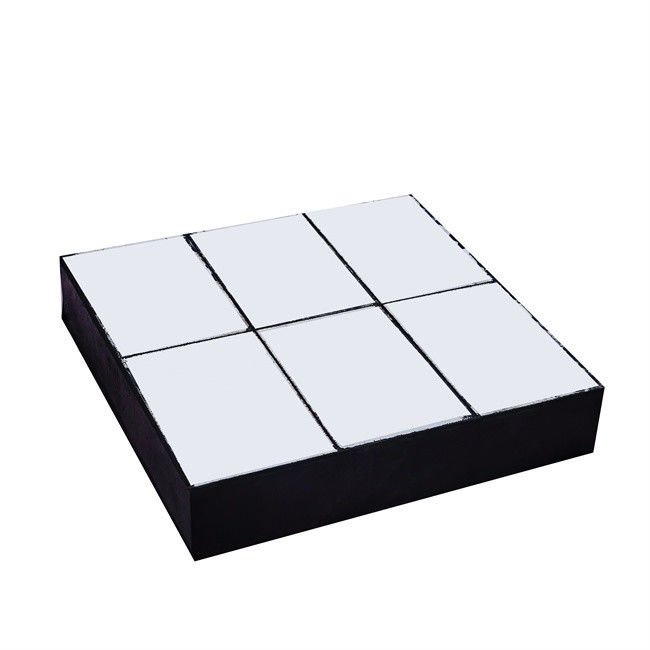

Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry

Certification
China Jiaozuo Debon Technology Co., Ltd. certification
I'm Online Chat Now

Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry

Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry
Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry
Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry

Large Image :  Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry

Product Details:
Place of Origin: CHINA
Brand Name: Debon
Certification: SGS, ISO9001
Model Number: DB-TCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Crate or Pallet
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry

Description
Name: Ceramic Wear Liner Material: 92%,95% AI2O3 Ceramic, Rubber/PU Cushion/steel Plate
Fastening: Bolt On, Magnetic, Countersinks, Etc. Ceramic Shape: Cylinders, Cones,Hexagonal Tiles,Custom Shapes
Color: Black, White, Red, Orange, Etc Steel Backing Plate: Mild Steel Or Stainless Steel
Custom Ceramic Liner: Provide Alumina Content: 92% /95% AI2O3; 99% Alumina
Application: Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Coal Mine, Iron Ore Mine, Etc. HS Code: 6909120000
High Light:

Al2O3 ZTA Ceramic Wear Liners Steel Backed

,

Al2O3 ZTA Ceramic Wear Liner Steel Backed

,

Al2O3 ZTA Ceramic Wear Lining Steel Backed

Silo ceramic wear liner high alumina ceramic with rubber for mining industry



Ceramic Wear Liner Description:



A ceramic wear liner is a type of protective lining used in industrial applications to protect equipment and surfaces from abrasive or corrosive materials. The liner is typically made of high-quality ceramics, such as alumina, zirconia, or silicon carbide, that offer excellent resistance to wear, impact, and high temperatures.

Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry 0



Ceramic Wear Liner Specification:



Item
Description
Unit
Result
Alumina Ceramics
1
Alumina(Al2O3)
%
92 / 95
2
Desity
g/cm3
3.64
3
Water Absorption
%
≤0.01
4
Hardness
Mohs
9
Rubber
1
Material

NR, BR
2
Gravity
Tensile Strength
1.15
3
Tensile Strength
MPa
16 min
4
Elongation
%
400 min
5
Abrasion Loss
mm3
≤80
6
Aging coefficient (70ºCx48h)

0.87
Peeling Strength
1
Peeling strength between rubber & ceramic
KN/m
≥12
2
Peeling strength between rubber & steel
KN/m
≥12





Ceramic Wear Liner Features:



  • Excellent wear resistant
  • High-temperature resistance
  • Corrosion resistance
  • Customizable
  • Easy installation
  • Low maintenance

Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry 1



Ceramic Wear Liner Application:



Ceramic wear liners are commonly used in industrial applications to protect equipment and surfaces from abrasive or corrosive materials. They can be applied to chutes, hoppers, conveyor systems, and other areas where material flow causes wear and tear. Ceramic wear liners offer excellent resistance to high temperatures, impact, and abrasion, making them ideal for use in mining, cement, steel, and power generation industries.





Why choose us:



1. Rich experience on production process of ceramic wear liner

2. Strict quality control on ceramic wear liner

3. Good delivery time

4. Custom shapeceramic wear liner are available.

5. Excellent bonding between rubber and ceramic



We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.

Silo High Alumina Ceramic Wear Lining With Rubber For Mining Industry 2
