Product Details:
|
| Name: | Alumina Ceramic Liner | Material: | AI2O3 Ceramic, Rubber/PU Cushion/steel Plate |
|---|---|---|---|
| Connection: | Weldable, Stud-welded Studded Metal Plate, CN Bonding,Magneted, Etc | Ceramic Shape: | Cylinders, Cones,Hexagonal Tiles,Custom Shapes |
| Rubber Hardness:: | 55±5 Shore A | Process: | Hot Vulcanization,welding, Cutting |
| Specification: | Custom Size Can Be Made Per Requirment | Alumina Content: | ≥92% Alumina |
| Application: | Cement, Power Plant, Coal Mine, Etc. | HS Code: | 6909120000 |
| Highlight: | Rubber Ceramic Wear Linings Mining,Mining Rubber Ceramic Wear Lining,Mining Rubber Ceramic Wear Linings |
||

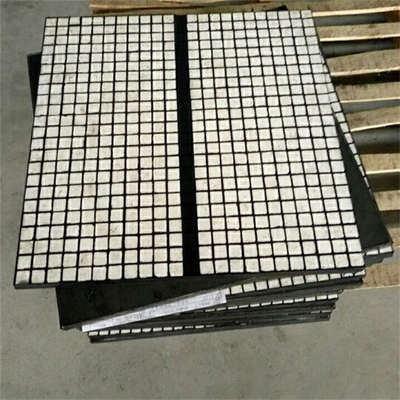

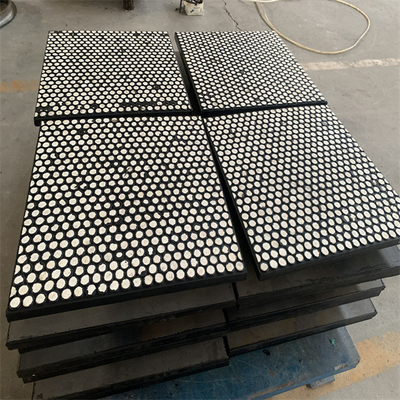

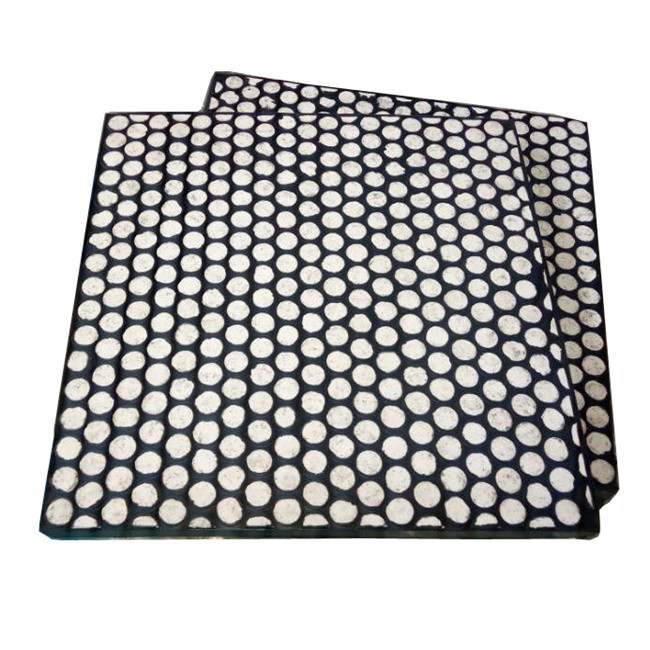

%95 Alumina Ceramic Tiles Wear Plates For Mud Pump Industry Composite Ceramics
Alumina Ceamic Liner Description:
Alumina ceramic liner is a type of protective lining used in industrial applications to protect equipment and surfaces from abrasive or corrosive materials. The liner is typically made of high-quality ceramics, such as alumina, zirconia, or silicon carbide, that offer excellent resistance to wear, impact, and high temperatures.
Alumina Ceramic Liner Specification:
|
Size (mm) |
Thickness of ceramic (mm) |
Thickness of rubber (mm) |
Thickness of steel backing plate |
Total thickness (mm) |
| 300x300x36 | Φ21x21 | 9 | 6 | 36 |
| 300x300x50 | Φ31x31 | 13 | 6 | 50 |
| 250x250x36 | Φ21x21 | 9 | 6 | 36 |
| 250x250x50 | Φ31x31 | 13 | 6 | 50 |
| 250x250x18 | 17.5x17.5x8 | 5 | 6 |
19 |
Alumina Ceramic Liner Features:
1.Modular Bolt-In Sections
2.Not Limited to Standard Sizes and Thicknesses
3.Highly Customizable
4.Fast Installation & Replacement
5.Cost Effective
6.Impact Absorbing
7.Abrasion Resistant
8.Noise Reduction
9.Lighter Compared to Steel
Alumina Ceramic Liner Application:
Alumina ceramic wear liners are commonly used in industries such as mining, cement production, power generation, and steel manufacturing, where equipment is subjected to extreme conditions and heavy wear.
Alumina Ceramic Liner Package:
Standard export packing, plywood pallet, no wood, no need fumigation
Pallet size: 1000*1000*620mm, Pallet weight: 1.2 tons
Pallet quantity for each 20GP container: 20~24 pallets
Why choose us:
1. Production experience:factory since 1996, mature production line, advanced facility, Strict QC.
2. Export experience:export since 2008, to over 50 countries.
3. Quality control:Conveyor belt scraper cleaner is one of our best sellers.We inspect each batch of our delivery. We have our laboratory for testing the hardness, dimensions,etc.
4. Quick delivery time:generally delivery can be made within one week.
We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.
