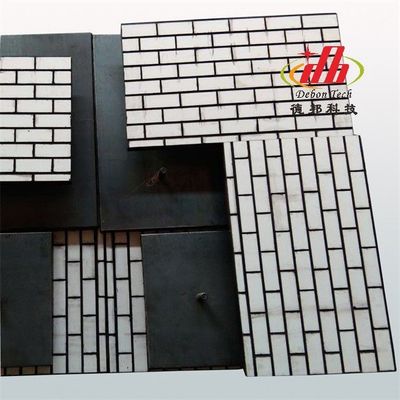

Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber

Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber
Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber
Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber

Large Image :  Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber

Product Details:
Place of Origin: CHINA
Brand Name: Debon
Certification: SGS, ISO9001
Model Number: DB-TCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Crate or Pallet
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber

Description
Name: Ceramic Wear Liner Material: High Alumina Ceramic, Zta Cearmic, Rubber
Fastening: Bolt On, Magnetic, Countersinks, Etc. Ceramic Shape: Brick, Cylinder, Hexagonal, Rectangular, Square
Superior Rubber Compound: Impact Absorbing Custom Ceramic Liner: Provide
Alumina Content: ≥95% Alumina Application: Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard, Coal Mine, Iron Ore Mine, Etc.
HS Code: 6909120000
High Light:

Al2O3 ZTA Steel Backed Rubber

,

Al2O3 Anti Impact Steel Backed Rubber

,

Al2O3 ZTA Ceramic Steel Backed Rubber

Anti Impact Steel Backed Rubber AI2O3 Ceramic Liner ZTA Ceramic Wear Lining



Ceramic Wear Liner Description:



A ceramic wear liner is a type of protective lining used in industrial applications to protect equipment and surfaces from abrasive or corrosive materials. The liner is typically made of high-quality ceramics, such as alumina, zirconia, or silicon carbide, that offer excellent resistance to wear, impact, and high temperatures.



We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.
We also use brand adhevise to ensure the bonding between ceramic and rubber.
Ceramic shapes can be cylinder, hexagonal, square, rectangular, etc.





Ceramic Wear Liner Specification:



Size

(mm)

Thickness of ceramic

(mm)

Thickness of rubber

(mm)

Thickness of steel

backing plate

Total thickness

(mm)

300x300x36 Φ21x21 9 6 36
300x300x50 Φ31x31 13 6 50
250x250x36 Φ21x21 9 6 36
250x250x50 Φ31x31 13 6 50
250x250x18 17.5x17.5x8 5 6 19





Ceramic Wear Liner Features:

  • High hardness: Ceramic wear liners have a high level of hardness, making them highly resistant to abrasion.

  • Chemical resistance: Ceramic wear liners are also highly resistant to chemicals, making them ideal for use in harsh environments.

  • Lightweight: Ceramic wear liners are lightweight, which makes them easier to install and handle.

  • Customizable: Ceramic wear liners can be customized to fit almost any shape or size, allowing them to be used in a wide range of applications.

  • Long lifespan: Ceramic wear liners can have a lifespan that is up to ten times longer than traditional wear materials like steel.

  • Easy to maintain: Ceramic wear liners require minimal maintenance and can be easily replaced when they become worn.

  • Noise reduction: Ceramic wear liners can also help reduce noise levels in industrial environments, improving worker safety and comfort.



Why choose us:



√ SGS audited supplier
√ ISO9001 certified factory
√ Extensive experience
√ Excellent bonding between ceramic and rubber, rubber and steel plate
√ Proven quality
√ Wear liners are exported to many countries:
Australia, Chile, USA, Canada, Russia, Kazakhstan, Malaysia, etc

Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber 0

Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber 1

Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber 2

Al2O3 ZTA Ceramic Wear Lining Anti Impact Steel Backed Rubber 3
