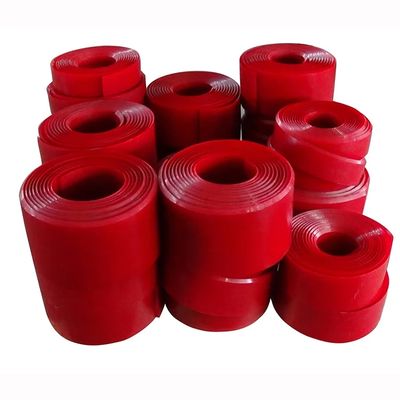

Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life

Certification
China Jiaozuo Debon Technology Co., Ltd. certification
I'm Online Chat Now

Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life

Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life
Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life

Large Image :  Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life

Product Details:
Place of Origin: JIAOZUO, HENAN, CHINA
Brand Name: Debon
Certification: SGS; ISO19001
Model Number: DB-QB
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Crate or Pallet
Delivery Time: 1-2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 m per month

Red Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life

Description
Advantage: Protect Conveyor To Fluid Erosion And Damage,extend Service Life Feature: High Wear Resistance And Long Service Life
Color: Black,red, Orange, Green,etc Function: Reduce The Dust Leakage;prevent The Material Overflowing
Customize: Length Can Be Customized Width: 150mm; 190mm;200mm;120mm
Structure: Straight Plate; Straight Plate+skirt Double Application: Conveyor Chute;conveyor Belt
High Light:

Red Conveyor Skirt Board

,

30m Conveyor Skirt Board

,

Polyurethane Conveyor Skirt Board

Conveyor Skirt Board 30m Polyurethane Skirting Long Service Life



Product Description:

DEBON Conveyor Skirt Board, which can deal with dust leakage and material overflowing from belt conveyor, ensuring a clean and efficient operation.

DEBON Conveyor Skirt Board is made from high-quality polyurethane materials, providing excellent durability and resistance to wear and tear. it will not damage the belt. Our straight plate and straight plate+skirt double structure options offer maximum flexibility to suit your specific needs. With our OEM service, we can customize the product to meet your unique requirements.

DEBON polyurethane conveyor skirt board are mainly used for sealing between conveyor belt and guide chute and between buffer bed and guide chute, and are auxiliary equipments for unloading port which is suitable for conveying bulk materials.

DEBON polyurethane skirt board adopts the integrated structure of straight plate sealing, the straight plate is close to the side gang of the guide chute, and the bottom is in contact with the belt to prevent the material from overflowing.



The installation position of the anti-spill skirt plate is the lower edge of the guide chute of the belt conveyor. Installation is by means of clamps and angle aluminium, two sets of clamps are used per metre.

Features:



  1. Skirt seal system for effective dust control
  2. Constructed with high-quality conveyor skirt board for durability
  3. Skirting rubber seal for improved sealing and reduced spillage
  4. Available in various lengths for different conveyor sizes
  5. Multiple thickness options for customizable wear resistance
  6. Straight plate or double plate structure for versatile installation



Technical Parameters:



Parameter Value
Material polyurethane
Hardness 63 shore a ; 70 shore a
Tensile strength 43 MPa
Tensile elongation 900 %
Abrasion 40 mm³



Applications:



Conveyor Skirt Board - Reduce Dust Leakage and Prevent Material Overflowing

Belt conveyors for bulk and powdered materials to prevent spillage of material and dust.



Packing and Shipping:

Conveyor Skirt Board Packaging and Shipping

Our Conveyor Skirt Board is carefully packaged to ensure its safe transportation. It is wrapped in a protective material and placed in a sturdy cardboard box. The box is then sealed and labeled with the necessary information, including product name, quantity, and shipping address.

For shipping, we offer various options to meet your delivery needs. We work with trusted shipping partners to ensure timely and secure delivery of your order. You can choose from standard ground shipping, expedited shipping, or express shipping. We also offer international shipping for our global customers.

Once your order is shipped, you will receive a tracking number so you can monitor the status of your delivery. We strive to provide a hassle-free shipping experience for our customers.

Thank you for choosing our Conveyor Skirt Board. We hope you are satisfied with our packaging and shipping services.



FAQ:




Q: Are you a trading company or manufacturer ?
A: We are a manufacturer that have about 20 years production experience.

Q: Can i get a sample for testing ? How do it charged ?
A: Yes, sample is free of charge, but we don't bear the Express costs.

Q: Do you provide guarantee of your products during a certain time?
A: Yes, all our products provides guarantees according to industry standards.

Q: Do you have foreign experience for your products?
A: Yes, all the products we manufactured have exported to USA, France,Australia,Russia,UK, etc.
