Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging

Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging
Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging

Large Image :  Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging

Product Details:
Place of Origin: Jiaozuo China
Brand Name: JZDB
Certification: ISO9001, 14001, 45001, SGS, Safety Certificate of Approval For Mining Products
Model Number: DB-TC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 10~15 Per Piece
Packaging Details: Export standard packing, plywood case or pallet
Delivery Time: 7~15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per week
Contact Now

Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging

Description
Features: With Cn Bonding Layer, Excellent Bonding Strength Product Name: Cn Layer Bonded Drum Pulley Ceramic Rubber Lagging Coating
Application: Installed On Conveyor Pulley To Increase Belt Traction Material: High Alumina Ceramic Tiles Embedded In Rubber Sheet
Advantages: Reliable Factory, Reasonable Price, Proven Quality
Highlight:

Cn Layer Bonded Ceramic Pulley Lagging

,

Ceramic Conveyor Drum Lagging

,

Cn Layer Bonded Conveyor Drum Lagging

Cn Layer Bonded Drum Pulley Ceramic Rubber Lagging Coating



Ceramic Pulley Lagging Description:

  1. Pulley lagging is installed on conveyor pulley to increase the friction with belt
  2. Increase belt traction, reduce belt slippage
  3. Prevent conveyor belt and pulley from wear damage
  4. Extend service life of conveyor belt and pulley



Ceramic lagging specification:

  1. Thickness: 12mm, 15mm, 20mm, etc
  2. Width: 500mm
  3. Length: 1050mm, 1200mm, 1400mm, 1800mm, 2050mm, 2550mm, etc.

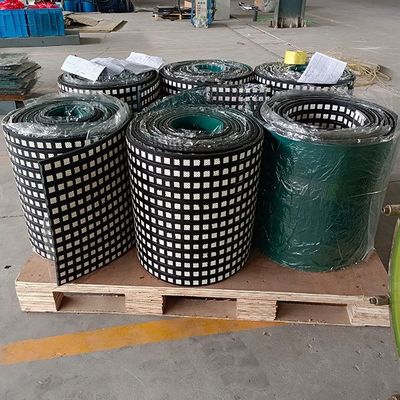

  4. Ceramic lagging can also be produced in rolls, 10 meter per roll



Conveyor Pulley Lagging Application:

  1. Drive pulley
  2. Discharge pulley
  3. Tail pulley
  4. Other types pulley which in arduous working environment and require for better belt traction



Technical Data Sheet for Ceramic pulley lagging



Rubber Compound

Description Testing Result Standard
Tensile Strength 20 MPa GB/T 528-2009
Elongation at Break 600% GB/T 528-2009
Hardness 63+/-5 Shore A GB/T 531.1
Abrasion Loss 110 mm3 GB/T 9867
Peel Strength 13 MPa GB/T 15254



Ceramic Tiles

Description Data Standard
Aluminum Oxide 95%
Specific Gravity 3.7 g/cm3
Vickers Hardness 1010 HV(30) GB/T 4340.3-2012
Fracture Toughness 3.67 MPa•m1/2 GB/T 8489





Pictrues:

Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging 0



Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging 1



Cn Layer Bonded Ceramic Pulley Lagging Conveyor Drum Lagging 2

Tag:

Belt Conveyor Drive Pulley Lagging Material,

High Wear Resistant Ceramic Pulley Lagging,

Ceramic Rubber Pulley Lagging Material
