95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing

Certification
China Jiaozuo Debon Technology Co., Ltd. certification
I'm Online Chat Now

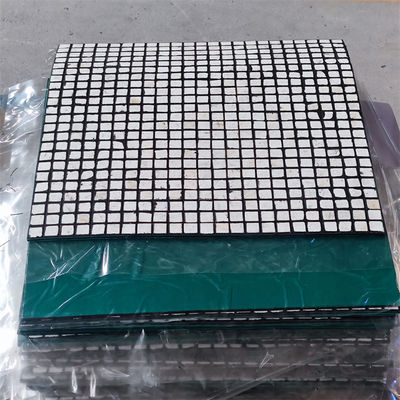

95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing

95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing
95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing
95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing

Large Image :  95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing

Product Details:
Place of Origin: CHINA
Brand Name: Debon
Certification: SGS, ISO9001
Model Number: DB-TCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Crate or Pallet
Delivery Time: 7-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month

95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing

Description
Name: Alumina Ceramic Liner Material: 92%,95% AI2O3 Ceramic, Rubber/PU Cushion/steel Plate
Connection: Weldable, Stud-welded Studded Metal Plate, CN Bonding,Magneted, Etc Ceramic Shape: Cylinders, Cones,Hexagonal Tiles,Custom Shapes
Rubber Hardness:: 55-60 Shore A Process: Hot Vulcanization,welding, Cutting
Specification: Custom Size Can Be Made Per Requirment Alumina Content: ≥92% Alumina
Application: Mining, Cement,power Generation,steel Manufacturing,etc HS Code: 6909120000
High Light:

Steel Backed ZTA Ceramic Wear Lining

,

Steel Backed ZTA Alumina Ceramic Wear Lining

,

ZTA Alumina Ceramic Wear Lining Steel Backing

High Alumina Ceramic Liner Rubber Liner Ceramic For Handing Material System



Alumina Ceamic Liner Description:



Alumina ceramic liner is a type of protective lining used in industrial applications to protect equipment and surfaces from abrasive or corrosive materials. The liner is typically made of high-quality ceramics, such as alumina, zirconia, or silicon carbide, that offer excellent resistance to wear, impact, and high temperatures.



95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 0

Alumina Ceramic Liner Specification:



Size

(mm)

Thickness of ceramic

(mm)

Thickness of rubber

(mm)

Thickness of steel

backing plate

Total thickness

(mm)

300x300x36 Φ21x21 9 6 36
300x300x50 Φ31x31 13 6 50
250x250x36 Φ21x21 9 6 36
250x250x50 Φ31x31 13 6 50
250x250x18 17.5x17.5x8 5 6

19

95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 1

Alumina Ceramic Liner Features:



Alumina ceramic wear liners are widely used in various industries to protect equipment and machinery from abrasion and impact damage. Some of the features of ceramic wear liners are:



  1. Hardness: Alumina ceramic wear liners are extremely hard and are made from high-grade alumina ceramics that have a Mohs hardness of 9. This means they can withstand high levels of abrasion in extremely harsh environments.
  2. Wear resistance: The high hardness of ceramic wear liners makes them extremely wear-resistant. They are ideal for protecting equipment in industries such as mining, cement, and steel manufacturing where abrasion can cause significant damage.
  3. Impact resistance: Alumina ceramic wear liners are also highly impact-resistant, making them ideal for use in applications where equipment is subjected to heavy impacts.
  4. Corrosion resistance: Ceramic wear liners are highly resistant to chemical corrosion and can withstand exposure to acidic and alkaline solutions.
  5. Customizable: Alumina ceramic wear liners can be customized to fit any shape, size, or design requirement, making them suitable for use in a wide range of industrial applications.

95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 2

Alumina Ceramic Liner Application:



Alumina ceramic wear liners are commonly used in industries such as mining, cement production, power generation, and steel manufacturing, where equipment is subjected to extreme conditions and heavy wear.

95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 3



Alumina Ceramic Liner Package:



Standard export packing, plywood pallet, no wood, no need fumigation

Pallet size: 1000*1000*620mm, Pallet weight: 1.2 tons

Pallet quantity for each 20GP container: 20~24 pallets



Why choose us:



1. We are a factory producing ceramic wear liners.

2. High quality

3. Standard and custom-made wear liners to fit your facility.

4. Excellent bonding between ceramic and rubber.

5. Extensive experience ensures high quality and consistency.

6. Custom ceramic rubber wear liners are available as per drawing and sample.

7. Strict QC/QA system, testing report will be issued to each purchase order.



We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.

95% High Alumina Ceramic Liner Rubber Ceramic Lining Steel Backing 4
