Product Details:
|
| Name: | Alumina Ceramic Liner | Material: | Alumina Ceramic , Natural Rubber, Zta Ceramic , Steel Plates, Polyurethane |
|---|---|---|---|
| Fastening: | Bolt On, Magnetic, CN Bonding Layer, Etc. | Ceramic Shape: | Cylinder, Hexagonal, Rectangular, Square，special Shape |
| Steel Backing Plate: | Mild Steel Or Stainless Steel | Processing Service: | Hot Vulcanizing |
| Alumina Content: | ≥95% AI2O3 | Application: | Mining,cement,power Generation,steel Manufacturing,etc |
| Advantage: | Factory Price,high Quality,warranty | HS Code: | 6909120000 |
| Highlight: | Wear Resistant Rubber Ceramic Lining,rubber ceramic lining,rubber ceramic lining |
||

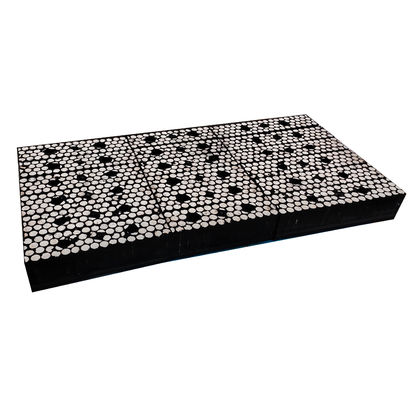

Abrasion Resistant Alumina Ceramic Liner Custom Ceramic Tiles For Protecting Equipment
Alumina Ceramic Liner Description:
Alumina ceramic liner is a type of wear-resistant lining material used to protect industrial equipment from abrasion, impact, and corrosion. It is made of high-density alumina ceramic tiles or panels that are bonded to a substrate such as steel or rubber.
The alumina ceramic tiles are arranged in a specific pattern to provide maximum protection against wear and impact. They are known for their exceptional hardness and wear resistance, which make them ideal for use in harsh industrial environments.
Alumina Ceramic Liner selection chart:
| Specification (mm) | Thickness of ceramic (mm) | Thickness of rubber (mm) | Thickness of steel backing plate | Total thickness (mm) |
| 300x300x36 | Φ21x21 | 9 | 6 | 36 |
| 300x300x50 | Φ31x31 | 13 | 6 | 50 |
| 250x250x36 | Φ21x21 | 9 | 6 | 36 |
| 250x250x50 | Φ31x31 | 13 | 6 | 50 |
| 250x250x18(17.5x17.5x8) | 7 | 5 | 6 | 18 |
Alumina Ceramic Liner Features:
Alumina Ceramic Liner Application:
Alumina ceramic liner can be customized to fit almost any shape or size of equipment, providing effective protection against wear and extending the service life of the equipment. It is commonly used in industries such as mining, cement, power generation, steel, and chemical processing.
Why choose us:
1. Production experience:factory since 1996, mature production line, advanced facility, Strict QC.
2. Export experience:export since 2008, to over 50 countries.
3. Quality control:Conveyor belt scraper cleaner is one of our best sellers.We inspect each batch of our delivery. We have our laboratory for testing the hardness, dimensions,etc.
4. Quick delivery time:generally delivery can be made within one week.
We are a factory dedicated to producing ceramic wear liner and have been improving the properties of ceramics. We use high quality rubber to offer better impact resistance and high quality rubber can also help holding the ceramic tiles, no ceramic tiles falling.
Ceramic shapes can be cylinder, hexagonal, square, rectangular, etc.
