Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars

Certification
China Jiaozuo Debon Technology Co., Ltd. certification
I'm Online Chat Now

Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars

Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars
Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars
Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars

Large Image :  Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars

Product Details:
Place of Origin: China, Jiaozuo
Brand Name: DEBON
Certification: SGS, ISO9001, ISO14001, ISO45001, GB, Mining Products Safety Certificate
Model Number: DB-HCCB
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 20-50 per piece
Packaging Details: carton + pallet
Delivery Time: 5-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month

Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars

Description
Material: UHMW PE, Rubber, Steel, Aluminium, Ultra-High Molecular Polyethylene (UHMWPE) Product Name: Anti-Shock Belt Support Conveyor Structure Ultra-High Molecular Polyethylene (UHMWPE) Impact Bars
Keyword: UHMWPE Impact Bar Thick: 55mm, 75mm
Wide: 100mm Length: 1220mm, 1400mm, 1500mm, 1800mm, 2000mm
Hardness: 65 Shore A Advantage: Factory Price, High Quality, Warranty, Experience
Benefits: Reduces Impact Force, Support Conveyor Belt Customize: We Could Make As Per Request
Colour: Red+black, Black
High Light:

Anti Shock Conveyor Impact Bars

,

Belt Supporting UHMWPE Impact Bars

,

Anti Shock UHMWPE Impact Bars





Anti-Shock Belt Support Conveyor Structure Ultra-High Molecular Polyethylene (UHMWPE) Impact Bars





We provides impact bed, impact bars, comprising several components, as a conveyor solution.



We specialize in producing and fabricating ultra-high molecular polyethylene (UHMWPE) impact bars, a compound specifically designed for anti-friction and impact absorption.

conveyor Impact bars are best suited at conveyor transfer and feed points, as well as loading points, to reduce the risk of damage to the conveyor line itself and ensuring that productivity goals can be met.





About slide impact bar:

1. UHMWPE cap + rubber cusion + steel T-slot or Aluminium T-slot

2. high wear resistant, impact resistant, belt supporting, protect conveyor belt,

3. easy installing and replacement.





Advantages & Features of Slide Impact Bars:

  • high impact and bending strength make sure longer service life
  • Aluminum slot for quick installation with 3~5 square or T bolts
  • Premium impact resistant rubber provides excellent cushioning and impact absorption.
  • 12mm/15mm/25mm UHMW top ensure lower friction
  • The 3 parts are permanently bonded through our special molding and vulcanization process.



Design of our Slide Impact Bars:
-UHMWPE Cap
-Cushioning rubber
-Aluminum T-slot / Steel T-slot

-Standard Screw: M12 /M16




Specification:

Item Size (mm) Length (mm)
Impact Bar Standard 1 100*55 1220/1400/1500/2010,etc
Impact Bar Standard 2 100*75 1220/1400/1500/2010,etc
Impact Bar Heavy Duty 280*100 1080



T-slot is made from an aluminium alloy or mild steel, impact bars can also be quickly mounted with T-bolts(M12 bolts, M16bolts), using fastening units. A rubber base and T-slot profile complete the components.

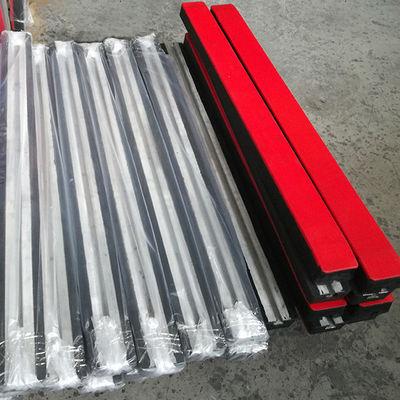

Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars 0

Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars 1

Anti Shock Conveyor Impact Bars Belt Supporting UHMWPE Impact Bars 2
