4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar

Certification
China Jiaozuo Debon Technology Co., Ltd. certification
I'm Online Chat Now

4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar

4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar
4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar
4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar

Large Image :  4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar

Product Details:
Place of Origin: China, Jiaozuo
Brand Name: DEBON
Certification: SGS, ISO9001, ISO14001, ISO45001, GB, Mining Products Safety Certificate
Model Number: DB-HCCB
Payment & Shipping Terms:
Minimum Order Quantity: 6 PC
Price: USD 20-50 per piece
Packaging Details: carton + pallet
Delivery Time: 5-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month

4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar

Description
Material: UHMWPE Plate + Rubber + Aluminium Slot Product Name: Conveyor Abrasive 4' Impact Bed Bars Rubber Impact Extension Bar
Keyword: Impact Extension Bar Thick: 55mm, 75mm
Wide: 100mm (4") Length: 1220mm(4'), 1400mm, 1500mm, 1800mm, 2000mm
Hardness: 65 Shore A Advantage: Factory Price, High Quality, Warranty, Experience
Benefits: Reduces Impact Force, Support Conveyor Belt Customize: We Could Make As Per Request
Colour: Red+black, Black
High Light:

4' Rubber Conveyor Impact Bars

,

Conveyor Abrasive Impact Extension Bar

,

4' Conveyor Impact Extension Bar



Conveyor Abrasive 4' Impact Bed Bars Rubber Impact Extension Bar

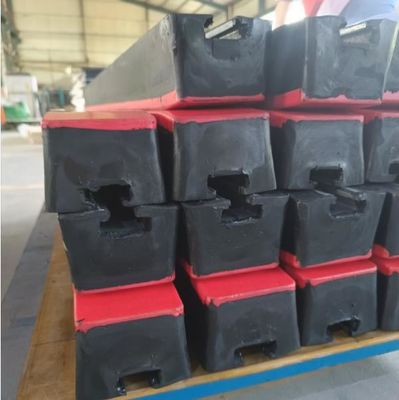

The impact bar is a combination of rubber, aluminium/ metal profiles, UHMWPE plate, and bonded by thermal vulcanization.

It is mainly used for buffering and receiving materials with large drop at the loading point belt conveyor, which can absorb the impact force of the material at the feeding end with high energy absorption and low friction.



Structure: UHMWPE plate + rubber + Aluminium slot

            Or UHMWPE plate + rubber + steel slot



-UHMWPE Cap
-Cushioning rubber
-Aluminum T-slot / Steel T-slot

-Standard Screw: M12 /M16



Conveyor Impact bar with Alumina Slot:

4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 0

4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 1



Conveyor Impact bar with Steel Slot:

4' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 24' Rubber Conveyor Impact Bars Conveyor Abrasive Impact Extension Bar 3




Specification:

Item Size (mm) Length (mm)
Impact Bar Standard 1 100*55 1220/1400/1500/2010,etc
Impact Bar Standard 2 100*75 1220/1400/1500/2010,etc
Impact Bar Heavy Duty 280*100 1080



Benefits:

  • Prevents the belt from tear and impact damage, hence increasing conveyor belt operating life.
  • Easy and quick installation, easy replacement.
  • Act as a shock absorber at loading points.
  • Abrasion and wear resistant.
  • Minimum maintenance and downtime required.
  • Prevents conveyor belt sagging.
  • Reduction in spillage together with belt skirting sealing board.
  • Minimum friction with the belt
