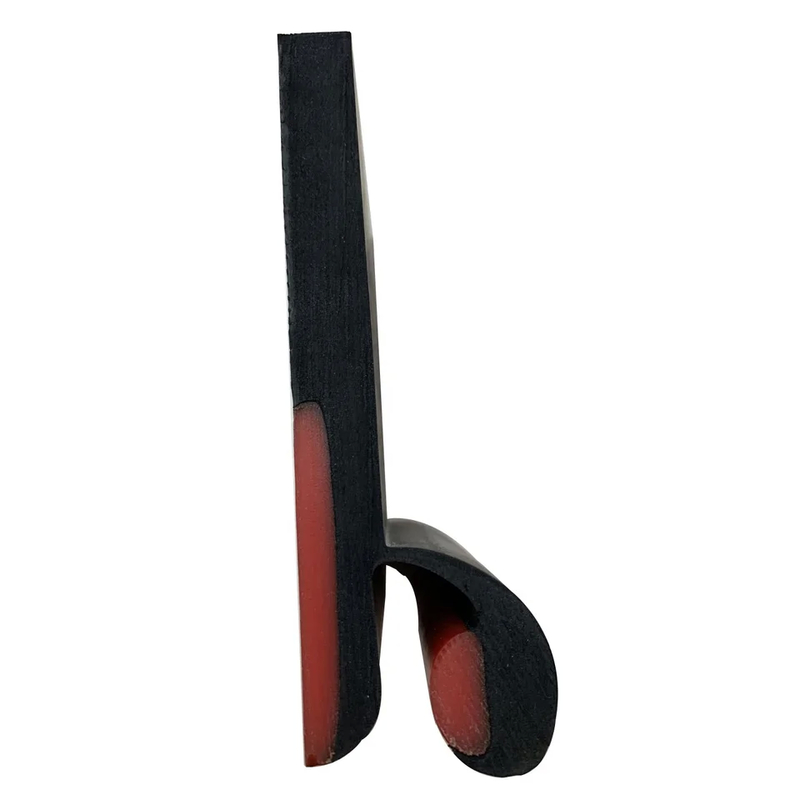

150mm Height Conveyor Belt Dual Rubber Skirting Board With Polyurethane

Certification
China Jiaozuo Debon Technology Co., Ltd. certification
I'm Online Chat Now

150mm Height Conveyor Belt Dual Rubber Skirting Board With Polyurethane

150mm Height Conveyor Belt Dual Rubber Skirting Board With Polyurethane
150mm Height Conveyor Belt Dual Rubber Skirting Board With Polyurethane 150mm Height Conveyor Belt Dual Rubber Skirting Board With Polyurethane

Large Image :  150mm Height Conveyor Belt Dual Rubber Skirting Board With Polyurethane

Product Details:
Place of Origin: JIAOZUO, HENAN, CHINA
Brand Name: Debon
Certification: SGS; ISO19001
Model Number: DB-QB
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Crate or Pallet
Delivery Time: 1-2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 m per week

150mm Height Conveyor Belt Dual Rubber Skirting Board With Polyurethane

Description
Product Name: Conveyor Skirt Board Application: Conveyor Chute;conveyor Belt
Benefits: Reduces Dust Leakage, High Wear Resistant Structure: Straight Plate+skirt Double
Feature: High Wear Resistance And Long Service Life Height: 150mm; 190mm
Thickness: 14mm Length: 10m;15m;24m;30m
High Light:

Conveyor Belt Rubber Skirting Board

,

150mm Height Rubber Skirting Board

150mm Height Conveyor Belt Dual Skirting Rubber Skirting With Polyurethane

Product Description:

150mm Height Conveyor Belt Skirting Rubber Skirting With Polyurethane

Double sealing rubber skirt is mainly made of polyurethane and sealing rubber combination, it is a kind of sealing device used in belt conveyor, which has the advantages of dust-proof, leakage-proof, wear-resisting, impact-resisting and so on. Double sealing rubber skirts are installed on both sides of the return belt of the belt conveyor to form a double-layer seal, effectively preventing material leakage, improving production efficiency and reducing environmental pollution. In addition, double sealing skirts can also effectively protect the belt and prolong the service life of the belt.



Features:

  1. High wear resistance
  2. Long service life
  3. Excellent sealing and dust control
  4. Customizable length and width
  5. Compatible with different belt cleaners
  6. Cost-effective solution for material containment
  7. Reduces maintenance and downtime costs
  8. Improves safety and working environment


Technical Parameters:

Structure Length Thickness Width
Straight Plate 10m; 15m; 24m; 30m 10mm; 12mm; 15mm; 20mm 150mm; 190mm; 200mm; 120mm
Straight Plate+Skirt Double 10m; 15m; 24m; 30m 10mm; 12mm; 15mm; 20mm 150mm; 190mm; 200mm; 120mm

Applications:

By using Debon's Conveyor Skirt Board, you can enjoy a range of benefits for your conveyor system. Our skirt board effectively reduces dust leakage, creating a cleaner and safer working environment for your employees. It also helps to improve the overall efficiency of your conveyor system by preventing material wastage and spillage. With its high wear resistance, our skirt board can also extend the service life of your conveyor system, saving you maintenance and replacement costs.

If you are looking for a reliable and effective solution for conveyor protection and dust control, Debon's Conveyor Skirt Board is your best choice. With its high-quality materials, precise design, and excellent performance, it is the perfect addition to your conveyor system. Contact us today to learn more and place your order.

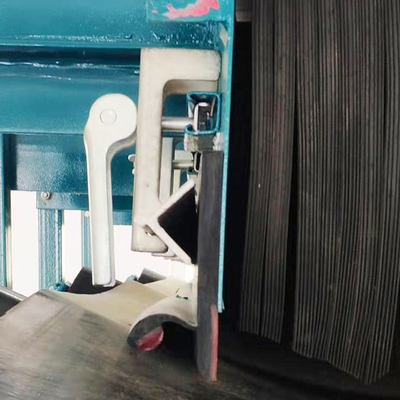

Installation Guide



  1. Prepare the lower edge of the conveyor chute by cleaning and removing any debris or obstructions.
  2. Secure the conveyor skirt board in place using clamps and angle steel.
  3. Ensure that the board is aligned and tightly fastened to prevent any gaps.
  4. Repeat the process for the entire length of the chute, making sure there are no overlapping sections.
  5. Inspect the installation and make any necessary adjustments for a perfect fit.

FAQ:



Q: Are you a trading company or manufacturer ?
A: We are a manufacturer that have about 20 years production experience.

Q: Can i get a sample for testing ? How do it charged ?
A: Yes, sample is free of charge, but we don't bear the Express costs.

Q: Do you provide guarantee of your products during a certain time?
A: Yes, all our products provides guarantees according to industry standards.

Q: Do you have foreign experience for your products?
A: Yes, all the products we manufactured have exported to USA, France,Australia,Russia,UK, etc.
