Ceramic Rubber Pulley Lagging With CN Bonding Layer

Ceramic Rubber Pulley Lagging

About Us:

1. Factory with over 20-year experience in producing a wide range of conveyor pulley lagging and other conveyor accessories

2. Advanced production line and testing equipment

3. Proven quality in real application

4. Strict quality control

5. Free samples

6. ISO9001, 14001, 45001 certified factory

Product Description

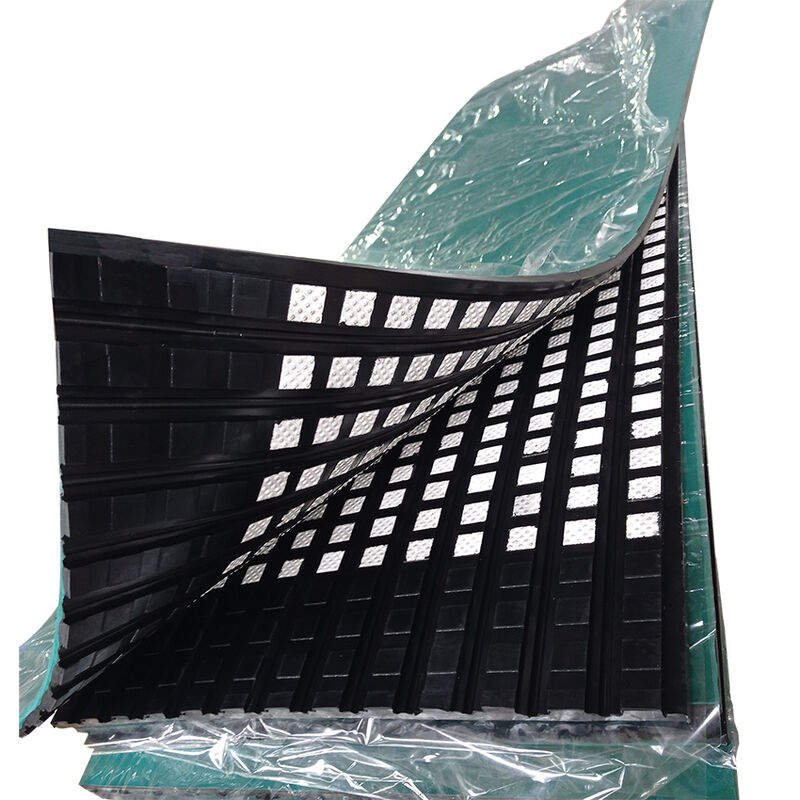

Ceramic drum lagging is high performance pulley surface covering for belt conveyor systems, constructed by vulcanizing process. It is composed of high-hardness alumina ceramic tiles into tough elastic rubber matrix. Our ceramic pulley lagging adopt 95% Al2O3 ceramic with convex knobs on tile surface for maximum traction. The rubber backing absorbs impact stress and ensures reliable bonding onto pulley shell, gaps between ceramic blocks act as drainage channels for water, sludge and fines, realizing self-cleaning effect and avoiding friction loss cuased by material buid-up

Ceramic Pulley Lagging Composition:

Ceramic pulley lagging consists of three core composite parts: High alumina ceramic tiles, elastic rubber cushion layer, CN backing layer

• Ceramic Tiles: Mainly 92%~95% Al2O3 alumina ceramic. Hard convex ceramic knobs are distributed on the working surface. This ceramic material features high hardness, excellent abrasion resistance and high friction coefficient
• Rubber base layer: high-strength synthetic rubber compound. It acts as a buffer carrier for ceramic blocks. CN bonding layer can be added on the back for cold-adhesive installation on pulley shell
• CN bonding layer: CN bonding layer is semi-vulcanized active rubber compound on the back side of pulley lagging, specially designed for on-site cold bonding installation onto steel pulley shells

Specification:

Ceramic Rubber Lagging can also be produced in rolls, 10meter per roll

Factory:

Jiaozuo Debon Technology Co., Ltd, founded in 2001, is a factory dedicated to the research and development, manufacturing and application for wear products in mining and other industries and conveyor accessories in material handling industry.

The company has advanced production line and testing equipment for rubber, polyurethane and ceramic products, etc

We are able to produce wear liner and provide different wear solutions according to different applications and requirements

The main products: pulley lagging, belt cleaner, conveyor skirt board, ceramic liner, ceramic rubber liner, etc

Our products are exported to many countries and areas including Australia, Canada, Russia, Europe, Chile, America, Southeast Asia, etc. We also have good reputation and market share in domestic market. Our customers prove the high quality and consistency
